Description

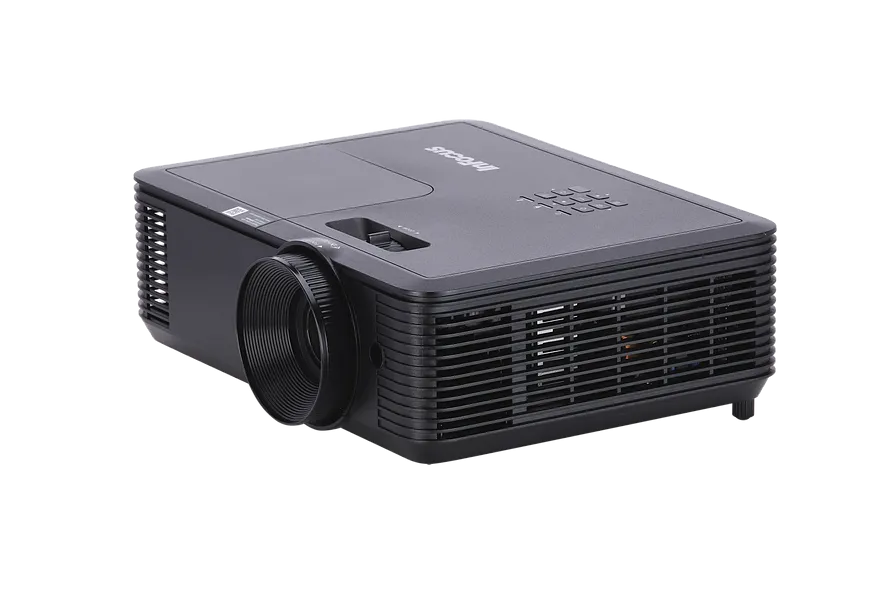

XGA 3800 LUMENS 4:3 Aspect Ratio Projector
The IN114BB projector does more with ultra-long lamp life, high brightness, and amazing connectivity. Beam more perfect images and engage your audience with 2 HDMI inputs, VGA, video, and audio capability. Plus, the compact design and lightweight makes it as easy to move around as it is to install.
Features
Low Latency Gaming Mode
Improved communication time from the input source to your projector allows for an enhanced gaming experience.
USB-A Power for Devices
Power your external devices like Amazon Firestick or Roku with the convenient USB-A input right on the projector.
Industry-leading Lamp Life
The IN114BB features up to an unprecedented 15,000 hours of lamp life when used in Dynamic Mode. With no filters to replace, these projectors are an unbeatable value.
Dual HDMI
An extra HDMI connection allows for multiple digital sources to be connected avoiding the need to change cables.
High Brightness
Get better, brighter images on any surface, in any light. The IN114BB has up to 3800 lumens.
Zoom
The zoom ratio adds flexibility for installations using pre-existing mounts. Adjust the zoom to create the perfect image in the same space.
Specifications
Display/Image
| Display System | Texas Instruments DLP 0.55 DMD |
| Optical System | Digital Light Projection (DLP) |
| Native Resolution | XGA 1024 x 768 |
| Native Aspect Ratio | 4:03 |
| Aspect Ratio Supported | 16:9, 16:10 |
| Number of Colors (Billion) | 1.07 |
| Number of Displayable Grey Shades | 1024 |
| Projection Modes | Front, Rear, Ceiling Front, Ceiling Rear |
| Brightness Lumens (High/Eco) | 3800/3040 |
| Contrast Ratio | 30000:1 |
| Keystone Correction Vertical (degrees) | 40 |
| Image Uniformity (percentage) | 80 |
| Horizontal Refresh Rate (kHz) | 31.469 ~ 97.551 |
| Vertical Refresh Rate (Hz) | 56 ~ 85 (120 for 3D) |
Connectivity
| Data Input Signal | VGA (640 x 400) ~ WUXGA (1920 x 1200), PC & MAC |
| Video Input Signal | NTSC, PAL, SECAM, SD, HD |
| Image Input | HDMI 1.4 x2, VGA x1, S-VIDEO x1 |
| Image Output | VGA x1 |
| Audio Input | 3.5mm Audio x1 |
| Audio Output | 3.5mm Audio x1 |
| Control Input | RS232 x1, IR Remote, KeyPad |
| Control Output | |
| Wireless Dongle Power & Support (DC 5V / 1.5A) | USB-A x1 |
| Security | Kensington Security Slot x1, PIN Code Lock & Timer |
Light Source
| Type / InFocus Model | UHP Lamp / SP-LAMP-105 |
| Lamp Power (Watts) | 203 |
| Lamp Life Hours Dynamic | 15000 |
| Lamp Life Hours Eco | 10000 |
| Lamp Life Hours Bright | 8000 |
Audio
| Speakers | 1 |
| Speaker (Watts) | 10 |
| Sound Channel | Mono |
Optical
| Throw Ratio | 1.94:1 ~ 2.16:1 @ 60 with tolerance /- 3% |
| Throw Distance (Meters/Feet) | 1.2 11.9 / 3.11 39 |
| Focal Length f (millimeters) | 21.85 ~ 24.01 |
| Projection Lens (f-stop) | 2.41 |
| Image Size Diagonal (Meters/Inches) | 0.584 ~ 7.620 / 23 ~ 300 |
| Image Offset (percentage) | 115 |
| Zoom Type | Manual Zoom & Focus |
| Optical Lens Shift | |
| Digital Image Shift Vertical / Horizontal (percentage) | 5/5 |
| Optical Zoom | 1.1:1 |
| Digital Zoom | 0.8x ~ 2.0x |
Special Features
| Enhanced Low Latency Gaming Mode |
| 24/7 Operation |
| BrilliantColor |
| Individual Colour Adjustments |
| RGB Gain/Bias Adjustment |
| Colour Space Adjustment |
| Direct Power On |
| Signal Power On |
| Sleep Timer |
| Digital Image Shift |
| Digital Edge Masking |
| HDMI DLP LinkTM |
| 2D & 3D Modes |
| ISF Night and Day Presets |
| DICOM Simulation Mode |
| User Programmable Presets |
| Auto Power Off |
| Image Freeze Function |
General
| Product Dimensions L x W x H (millimeters) | 236 x 313 x 107 |
| Product Weight (Kilograms) | 2.6 |
| Shipping Dimensions L x W x H (millimeters) | 400 x 337 x 168 |
| Shipping Weight (Kilograms) | 3.9 |
| OSD Languages | English / Deutsch / Franais / Italiano / Espaol / Portugus / Polski / Nederlands / Hindi / Norsk / Dansk / Svenska / Filipino / Malay / Romanian / Vietnamese / Indonesian |
| Standard Accessories | Power cord, VGA cable, Safety instructions, User documentation, Remote control without batteries |
